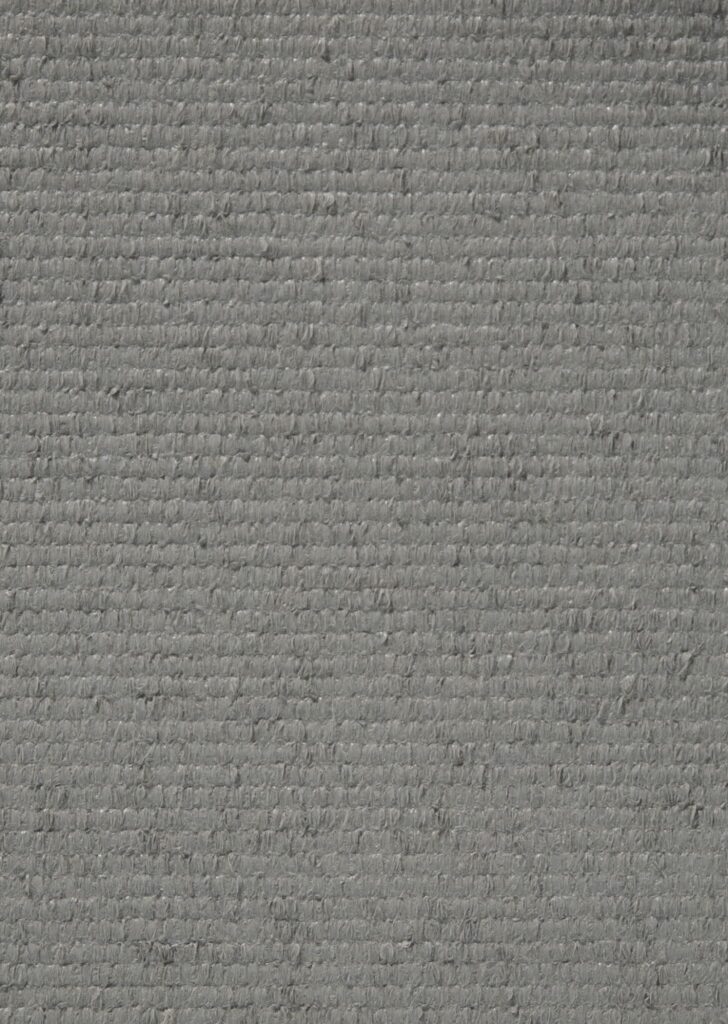

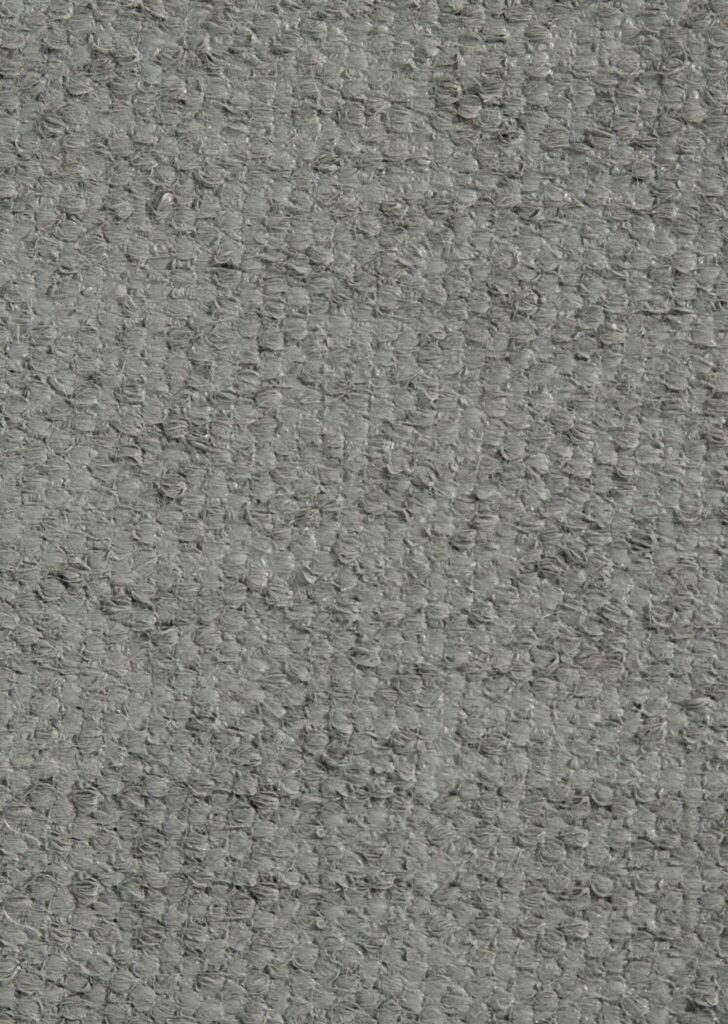

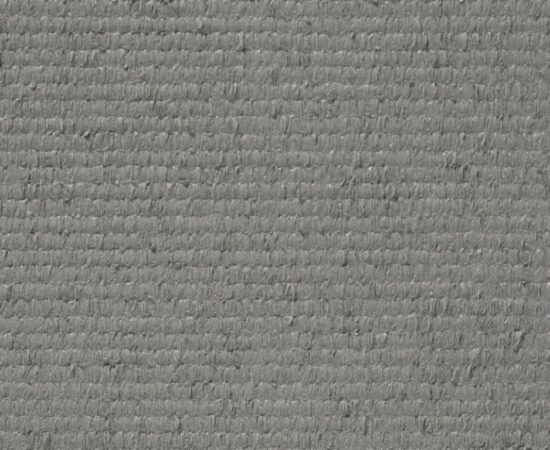

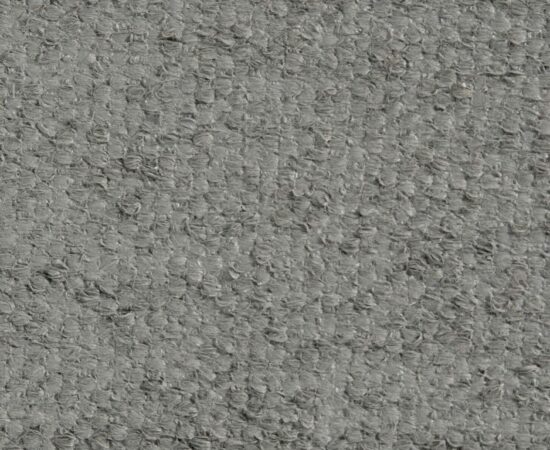

AMI-TUF® (SGL) (SGLHB) Silicone Coated Cloth
AMI-TUF® is a silicone rubber coated fiberglass cloth. The special silicone rubber coating extends the life of the fabric and provides superior water, oil and heat resistance. AMI-TUF Standard colors include Gray, Red and Salmon, however, we can customize any one of our AMI-TUF (SGL) fabrics to meet your facility requirements. Ask about custom colors and company name imprinting.
We do not stock samples of this product at this time.
Download SDS
- Product Specs
- Product Line Information
- Data Sheets
| Product Type | Product Number | Standard Put-up | Unit of Measure | Fabric Type | Cont. Op. Temp. | Available Widths (inches) | Weight (oz. per sq. yd) | Thickness (inches) | Series | Data Sheets |
|---|---|---|---|---|---|---|---|---|---|---|
| SGL5300 53 oz | SGL5300 | 50 YD/RL | YDS | AMI-TUF (Silicone coated) | 500°F (260°C) | 40, 60 | 53 | 0.06 | SGL | Data Sheet |
| SGL 9000 90 oz | SGL9000 | 50 YD/RL | YDS | AMI-TUF (Silicone coated) | 500°F (260°C) | 38, 40, 60, 36 | 14, 53, 63, 90, 17, 20, 32 | 0.01, 0.025, 0.035, 0.125, 0.02, 0.06 | SGL | Data Sheet |
| SGL6300 63 oz | SGL6300 | 50 YD/RL | YDS | AMI-TUF (Silicone coated) | 500°F (260°C) | 38, 40, 60, 36 | 14, 53, 63, 90, 17, 20, 32 | 0.01, 0.025, 0.035, 0.125, 0.02, 0.06 | SGL | Data Sheet |
| SGLHB2000 20 oz | SGLHB2000 | 50 YD/RL | YDS | AMI-TUF (Silicone coated) | 500°F (260°C) | 38, 40, 60, 36 | 14, 53, 63, 90, 17, 20, 32 | 0.01, 0.025, 0.035, 0.125, 0.02, 0.06 | SGL | Data Sheet |
Show All
Tough coated fiberglass stands up to industrial punishment.
AMI-TUF® coated fiberglass cloth is the ideal solution for the outer layer of removable insulation pads on pipes, valves and joints (see AMI-FAB® System for details). Use AMI-TUF tape as pipe wrap in harsh industrial environments. AMI-TUF can also be fabricated into light, medium or heavy duty AMI-GUARD welding blankets; the silicone rubber coating provides a non-slip surface when used as a floor covering in high traffic areas.
- Silicone rubber coated fabrics provide superior water, oil and heat resistance
- PTFE (Teflon®) coated cloth provides effective chemical resistance
- Continuous protection to 500°F (limit of Silicone), 550°F (limit of PTFE)
- High abrasion resistance
- Strong and durable
- Available in 10 colors to match equipment, simplify identification (hot pipes, cold pipes, etc.), or blend with any industrial environment
- Packaging Guidelines for SGL Materials
(Photo courtesy of PetroHab, LLC.)
AMI’s FM Approved AMI-TUF® silicone rubber coated fiberglass cloth is the product of choice for these Hot Work Safety Enclosures —sometimes referred to as pressurized welding habitats — used for hot work in refineries, petrochemical plants and other heavy industrial facilities.
Products
| Product Number | Data Sheets |
|---|---|
| SGL5300 | Data Sheet |
| SGL9000 | Data Sheet |
| SGL6300 | Data Sheet |
| SGLHB2000 | Data Sheet |
