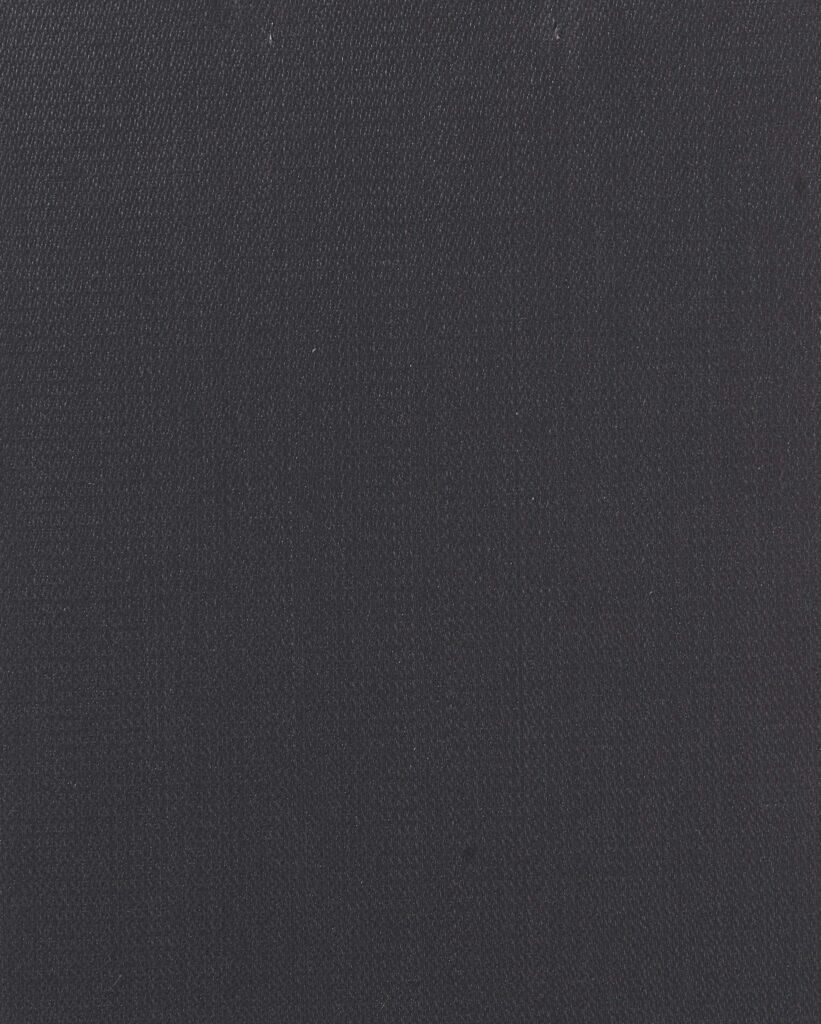

AMI-TUF® (SGL) Cloth

AMI-TUF® is a silicone rubber coated fiberglass cloth. This product is a strong and durable textile that is FM Approved and meets the requirements of NFPA 51B. The special silicone rubber coating extends the life of the fabric and provides superior water, oil and heat resistance. AMI-TUF Standard colors include Gray, Red and Black however, we can customize any one of our AMI-TUF (SGL) fabrics to meet your facility requirements. Ask about custom colors and company name imprinting.

SGL1700 meets the requirements of ASTM C1695-09

SGL1700 and SGL3200 meet NFPA 701-1999

Sample available in SGL1400 14 oz Gray, SGL1700 17 oz Red, Gray, or Black SGL3200 Red or Gray. Contact Customer Service for other color requests.

Download SDS
  • Made in the USA
  • FM Approved
  • Product Specs
  • Product Line Information
  • Data Sheets
Product TypeProduct NumberCont. Op. Temp.FM ApprovedPerformance CategoryUnit of MeasureWeight (oz. per sq. yd)Thickness (inches)Available Widths (inches)Application EnvironmentApplication Rating Key3rd Party Spec.Fabric TypeSeriesData Sheets
SGL1400 14 ozSGL1400--

500°F (260°C)

Yes

Curtain

YDS

14

0.013

38, 60

Indoor, Outdoor, Vertical

03 Good

ANSI/FM 4950 – FM Approved

AMI-TUF (Silicone coated)

SGL

Data Sheet
Cloth-SGL3200 32 oz GRAYSGL3200G

500°F (260°C)

Yes

Curtain

YDS

14, 17, 32

0.013, 0.016, 0.035

37, 38, 60

Indoor, Outdoor, Vertical

03 Good, 05 Better

ANSI/FM 4950 – FM Approved, ASTM C1695-09, NFPA701/1999

AMI-TUF (Silicone coated)

SGL

Data Sheet
Cloth-SGL3200 32 oz REDSGL3200R

500°F (260°C)

Yes

Curtain

YDS

14, 17, 32

0.013, 0.016, 0.035

37, 38, 60

Indoor, Outdoor, Vertical

03 Good, 05 Better

ANSI/FM 4950 – FM Approved, ASTM C1695-09, NFPA701/1999

AMI-TUF (Silicone coated)

SGL

Data Sheet
Cloth-SGL1400 14 oz GRAYSGL1400G

500°F (260°C)

Yes

Curtain

YDS

14, 17, 32

0.013, 0.016, 0.035

37, 38, 60

Indoor, Outdoor, Vertical

03 Good, 05 Better

ANSI/FM 4950 – FM Approved, ASTM C1695-09, NFPA701/1999

AMI-TUF (Silicone coated)

SGL

Data Sheet
Cloth-SGL1700 17 oz REDSGL1700R

500°F (260°C)

Yes

Curtain

YDS

14, 17, 32

0.013, 0.016, 0.035

37, 38, 60

Indoor, Outdoor, Vertical

03 Good, 05 Better

ANSI/FM 4950 – FM Approved, ASTM C1695-09, NFPA701/1999

AMI-TUF (Silicone coated)

SGL

Data Sheet
Cloth-SGL1700 17 oz GRAYSGL1700G

500°F (260°C)

Yes

Curtain

YDS

14, 17, 32

0.013, 0.016, 0.035

37, 38, 60

Indoor, Outdoor, Vertical

03 Good, 05 Better

ANSI/FM 4950 – FM Approved, ASTM C1695-09, NFPA701/1999

AMI-TUF (Silicone coated)

SGL

Data Sheet
Cloth-SGL1700 17 oz BLACKSGL1700B

500°F (260°C)

Yes

Curtain

YDS

14, 17, 32

0.013, 0.016, 0.035

37, 38, 60

Indoor, Outdoor, Vertical

03 Good, 05 Better

ANSI/FM 4950 – FM Approved, ASTM C1695-09, NFPA701/1999

AMI-TUF (Silicone coated)

SGL

Data Sheet
SGL1700 17 ozSGL1700--

500°F (260°C)

Yes

Curtain

YDS

17

0.016

60

Indoor, Outdoor, Vertical

05 Better

ANSI/FM 4950 – FM Approved, ASTM C1695-09, NFPA701/1999

AMI-TUF (Silicone coated)

Data Sheet
SGL3200 32 ozSGL3200

500°F (260°C)

Yes

Curtain

YDS

32

0.035

37, 60

Indoor

05 Better

ANSI/FM 4950 – FM Approved, NFPA701/1999

AMI-TUF (Silicone coated)

Data Sheet

AMI-TUFTough coated fiberglass stands up to industrial punishment.

AMI-TUF® coated fiberglass cloth is the ideal solution for the outer layer of removable insulation pads on pipes, valves and joints (see AMI-FAB® System for details). Use AMI-TUF tape as pipe wrap in harsh industrial environments. AMI-TUF can also be fabricated into light, medium or heavy duty AMI-GUARD welding blankets; the silicone rubber coating provides a non-slip surface when used as a floor covering in high traffic areas.

  • Silicone rubber coated fabrics provide superior water, oil and heat resistance
  • PTFE (Teflon®) coated cloth provides effective chemical resistance
  • Continuous protection to 500°F (limit of Silicone), 550°F (limit of PTFE)
  • High abrasion resistance
  • Strong and durable
  • Available in 10 colors to match equipment, simplify identification (hot pipes, cold pipes, etc.), or blend with any industrial environment
  • Packaging Guidelines for SGL Materials
(Photo courtesy of PetroHab, LLC. AMI’s FM Approved AMI-TUF® silicone rubber coated fiberglass cloth is the product of choice for these Hot Work Safety Enclosures —sometimes referred to as pressurized welding habitats — used for hot work in refineries, petrochemical plants and other heavy industrial facilities.

(Photo courtesy of PetroHab, LLC.)
AMI’s FM Approved AMI-TUF® silicone rubber coated fiberglass cloth is the product of choice for these Hot Work Safety Enclosures —sometimes referred to as pressurized welding habitats — used for hot work in refineries, petrochemical plants and other heavy industrial facilities.

Products















Product NumberData Sheets
SGL1400--Data Sheet
SGL3200GData Sheet
SGL3200RData Sheet
SGL1400GData Sheet
SGL1700RData Sheet
SGL1700GData Sheet
SGL1700BData Sheet
SGL1700--Data Sheet
SGL3200Data Sheet
