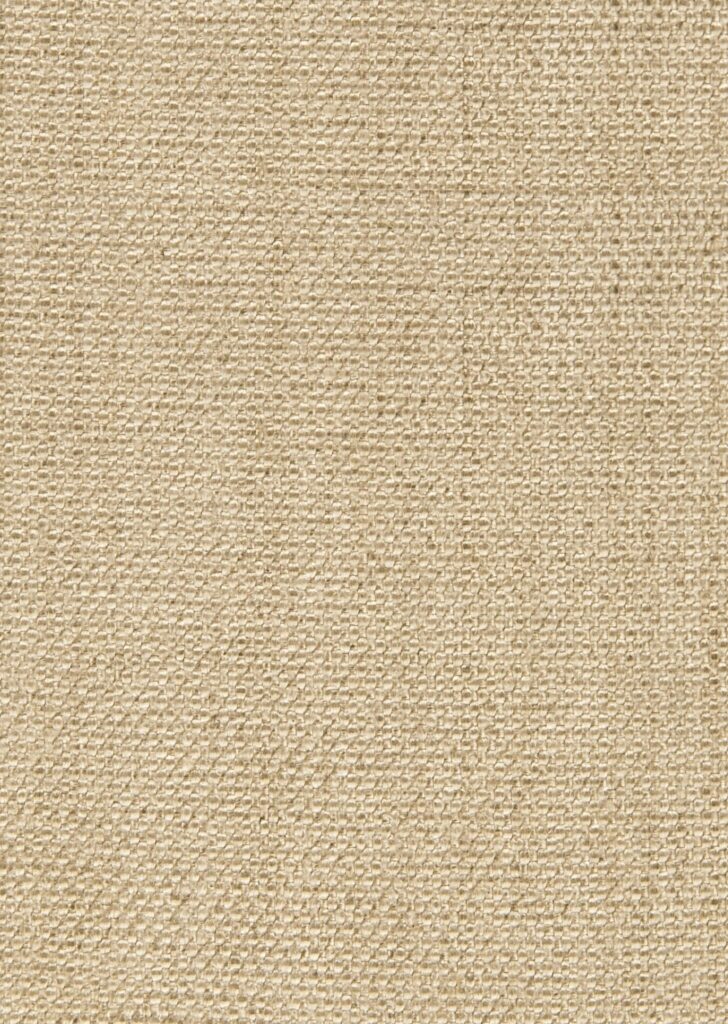

AMI-GLAS® (GL) Cloth – 9383 – Heat Cleaned
This is a heat cleaned product. AMI-GLAS® (GL) is a 100% fiberglass cloth and considered the dependable standard for removable insulation pads for pipe and valve protection. It is used on the hot surface side and is rated to 1000°F (540°C) continuous service. A ravel resistant coating (RR) is available. AMI-GLAS (GL) meets the US Coast Guard and military specifications.
Sample available in 9 oz and 18 oz Heat Cleaned only.
Download SDS- Product Specs
- Product Line Information
- Data Sheets
Product Type | Product Number | Series | Fabric Type | Cont. Op. Temp. | Available Widths (inches) | Weight (oz. per sq. yd) | Nominal Thickness (inches) | 3rd Party Spec. | Data Sheets |
---|---|---|---|---|---|---|---|---|---|
9 oz Heat Cleaned | GL0850-9383 | GL | AMI-GLAS (Fiberglass) | 1000°F (540°C) | 40, 60, 72 | 24 | Data Sheet | ||
24 oz, Heat Cleaned | GL2401-9383 | GL | AMI-GLAS (Fiberglass) | 1000°F (540°C) | 40, 60, 72 | 24 | Data Sheet | ||
18 oz Heat Cleaned | GL2025-9383 | GL | AMI-GLAS (Fiberglass) | 1000°F (540°C) | 40, 60, 72 | 18 | 0.036 | MIL C 20079H Type 1 Class 9 | Data Sheet |
Show All
The workhorse of industrial textiles.
Used for Welding Protection, Insulation, Gasketing, Expansion Joints, Heat Shields and Containment, Oven Door Seals, Emergency Fire Blanket, Tadpole Tape and Machinery, Personnel Protection, Safety Clothing and more. AMI-GLAS® is made of 100% fiberglass, and does not contain asbestos or ceramic.
- Made with 100% continuous filament fiberglass
- Upper temperature limit of 1000° F (540° C)
- Continuous protection up to 1000° F (540° C)
- Excellent insulation value (K=.419)
- Tough, flexible and versatile
- Meets USCG 164.009 for incombustibility
- Non-hazardous to workers
- Meets military specifications for shipbuilding and repair
- Can be dyed, coated and/or aluminized
- Available with pressure-sensitive adhesive
- Can be slit or sewn to order, and specially packaged
- Available in seven colors
Products
Product Number | Data Sheets |
---|---|
GL0850-9383 | Data Sheet |
GL2401-9383 | Data Sheet |
GL2025-9383 | Data Sheet |
