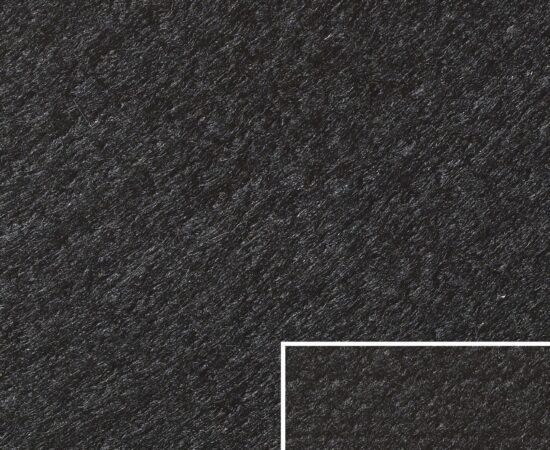

CARBO-GLAS® (PGL) Cloth
CARBO-GLAS® (PGL) is an advanced composite made up of 100% fiberglass that is sandwiched between layers of 100% carbon fabric resulting in an extremely tough, FM Approved welding pad that resists weld spatter and direct flame better than all-carbon or all-glass fabrics. It is designed for heavy-duty slag protection and holds 60% more molten slag than non-carbonized glass fabric. It performs dry or wet—and retains 75% of its strength when wet. CARBO-GLAS (PGL) is rated to 500°F (260°C).
Download SDS
- Product Specs
- Product Line Information
- Data Sheets
| Product Type | Product Number | Unit of Measure | Fabric Type | Cont. Op. Temp. | FM Approved | Weight (oz. per sq. yd) | Performance Category | Series | Thickness (inches) | Available Widths (inches) | Application Environment | Application Rating Key | Data Sheets |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PGL2000 20 oz | PGL2000 | YDS | CARBO-GLAS (Advanced carbon fiberglass) | 500°F (260°C) | Yes | 20 | Pad | PGL | 0.150 | 60 | Horizontal, Indoor, Outdoor | 07 Best | Data Sheet |
Show All
Superior protection against slag and welding spatter.
Designed for heavy-duty slag protection, CARBO-GLAS® is an extremely tough yet soft and flexible fabric made to resist weld spatter and direct flame better than all-carbon or all-glass fabrics. An advanced carbon fiberglass composite fabric, CARBO-GLAS® is made by sandwiching fiberglass between layers of carbon fabric.
- Holds up to 5 times more slag than non-reinforced carbon fabrics
- Holds 60% more molten slag than non-carbonized glass fabric
- Can perform dry or wet — retains 75% of its strength when wet
- Soft, flexible, non-irritating
- Continuous operating temperature: 500°F (260°C)
- Upper temperature limit: 1000°F (538°C) (base fiberglass fabric)
Products
- Curtains
- Pads
- Blankets
| Product Number | Data Sheets |
|---|---|
| PGL2000 | Data Sheet |
